Highlights of the Provisional Population Totals of the Census of India - 2001


Installation Procedure
A] SYSTEM REQUIREMENTS:

The software is developed in Visual Basic which, to work efficiently, is demanding in terms of hardware. Ideally, you should work with the latest of the Pentium processors with a 32 MB RAM. Before installing the Census of India 2001 software, you must ensure that the following hardware and software requirements are met.

Operating system Windows 95 / 98 / NT (With Internet Explorer 5.0 for the Detailed Version)
Processor Pentium-I or higher
RAM 16 MB. Preferably 32MB
Hard disk space 50 MB
Display SVGA colour monitor
Disk drive CD-ROM drive
Pointing device Microsoft mouse or compatible pointing device

To install the Detailed version of the software, which has been developed on Visual Basic and Access, the system should have Windows 95/98 with atleast Internet Explorer 4.02 SP2 or a later version or any latest Windows edition.

In case the minimum configuration is not found, then the following error may come at the time of installation i.e. in Step 6, when you click on the Computer Symbol: "429-ActiveX component can't create object / This program has performed an illegal operation".

To overcome this problem, you would need to first update your system with Internet Explorer 5.0 and then start installing the Census 2001 software.

For your convenience, we have included the Internet Explorer 5.5 software in the CD of the Detailed version, in the IE5setup directory. To update Internet Explorer in your system just run the \ IE5setup \ IE5setup.exe from the CD. This will update your system.


B] Installation Procedure

The entire installation procedure will take roughly 10-15 minutes for the Detailed version and about 5-10 minutes for the Highlights version.

The steps to be carried out to install the software in your machine, are as follows :

Step 1 : Insert the CD received from Francis Kanoi into the CD drive.
Step 2 : Click <Start> from the Windows main screen
Step 3 : Click <Run>
Step 4 : The following window will appear

In the space provided, type in the following : d:\setup.exe.' d ' refers to the source drive (CD drive). If ' d ' is not your source drive, please type in the correct CD drive name. Then click <ok>.

Step 5 : Click

<ok> on the window titled "FK Census of India -2001" for the Detailed version and "FK Census 2001 - Highlights" for the Highlights version.

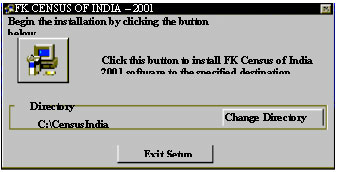

Step 6 : The default directory name for the Detailed version will be C:\CensusIndia, and for the Highlights version it will be C:\CensusIndia\Highlights. At this point, the screen will carry a window similar to the one below :

To change the directory name or the hard disk drive name, click on the <change directory> button. Ideally, however, you should try and avoid changing the directory name. But the name of the hard disk drive can be changed, from C to D or E, as the case may be.

Step 7 : Then click on the button at the top left corner of the window, which carries a picture of a computer. This will initiate the installation process, which will take about 5-10 minutes, depending on the version in use. At the end of the installation, the following screen will be displayed.

Step 8 : Type in the User Name and the User Password.

Please keep in mind the following while entering the User Name and Password.

1] The maximum length of the name can only be 15 characters.
2] Maximum length of the password can only be 8 characters.
3] The password is case sensitive. Once the User Name and Password are entered, click on <continue>.

Step 9: The installation procedure will now display a 9-digit Set up Code, for e.g. 569-384-279. Please note down the number given by your computer and then click on <finish>.

Step 10 : Wait for the following box to be displayed on the screen, then click on <ok>.

This will clear the installation screen and return you to the Windows main screen.


C] To access the software, an installation code has to be obtained from us.

To obtain the installation code, the following steps need to be followed:

Step 1: Please log on to our website, www.franciskanoi.com.

Step 2: On our home page, click on <An analysis of the census of India 2001> or <Highlights of the census of India 2001>, as the case may be.

Step 3: From the menu bar on the left, click on the <obtain installation code> button.

Step 4: Enter the alpha-numeric Customer ID provided to you in the covering letter sent with the CD. The code incorporates four letters from the name of the subscriber company.

Step 5: Enter your name, designation and all communication details .

Step 6: Enter the 9-digit Set up code generated by your computer

The request will be processed automatically and an installation code will be displayed on the screen within seconds.

However, in case of any problem, please email the set-up code to us. Please also mention your Customer ID no. in the email, to enable us to process the request.


D] To register the Installation Code in your computer, please follow the steps given below:

Step 1 : Insert the CD-ROM in the CD-Drive. For the Highlights version, the CD need not be inserted.

Step 2 : Click on the <start> button from the Windows main screen.

Step 3 : Click on the <program> option.

Step 4 : Click on the <FK census of India - 2001> option for the Detailed version or the <FK census 2001 - Highlights> for the Highlights version

Step 5 : Enter the installation code in the text box provided. This will take you to the opening screen of the software. This requires to be done only the first time you are entering the software.

Step 6 : The User Name and Password have to be entered, exactly as entered in Step 8 of the installation process. These must be entered each time the software has to be used.


E] Use of the software on subsequent occasions :

1. The steps mentioned in section D above, except for step 5, must be followed each time you need to use the software.

2. If you are using the Detailed version of the Census of India software, the CD must be inserted in the CD drive whenever you want to use the software and it must remain there until you exit from the software.

Important

Please note that only two installation codes will be provided per CD, one for a laptop and one for a desktop.
Therefore, care must be taken to install the software in a computer in which you plan to have the software, on a more or less permanent basis.
Requests for additional codes will not be entertained


F] How to access the software through the CD drive in the server * (Relevant to the Detailed software only)

The Census of India 2001 software has been developed for installation in a stand alone machine only. However, you could access the software in a LAN by carrying out the following steps:

1. Insert the CD in the CD drive of the server. *

2. After that, the following should be done on the server (System A).

The CD Drive of the server has to be shared. If this has not already been done, please carry out the following instructions:

i) Double click on <Mycomputer> of the server. Choose the CD Drive and right click on it Select <Sharing > from the menu
ii) A window will appear - Choose <Shared as> the option and give the CD Drive name (as in server) as the shared name and click <Apply>.

For e.g. if the CD Drive in the Server node is G: then the Shared name should also be G:

3. Then the following should be done on the machine that you want to access the software on, i.e. the node (System B).

a) Right click on the Network Neighbourhood (icon seen on the Desk Top) Choose
<Map Network Drive>

b) A small window will appear on the screen. Select a drive to map the shared CD drive in the server.

c) In the same window, in the space given alongside < Path >, type the server name and the shared name, For e.g. if the Server name is "NTServer" and the Shared name is "G", then the path will be \\ntserver\G. Click < Ok > after typing this. You will now be able to access the CD drive in the server.

* The CD drive could be in the server or in any system connected through a network to the system on which the software is being installed.

Now, you can install the software in this system (system B) by following the steps outlined in the installation procedure.

However, please note the following:
1) The software can be accessed only in the node (System B) in which it has been installed.
2) The CD drive should be mapped, each time, as it was mapped at the time of installation. (i.e. steps 3 a,b & c above).
3) The CD should be kept inserted in the mapped drive (System A), whenever the software is in use.
